Product type：Character LCD Module
Show contents：16x2
Outline size(mm) ：100X42X13
Size of View Window(mm)：80X20.5
Display size(mm) ：76.37x16.02
Point spacing(mm)：0.83x0.98
Product application：Instruments
Visual angle：6H
Backlight type or brightness：YG
Connection PIN Number：16PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：5.0V
Driver chip model：ST7066U

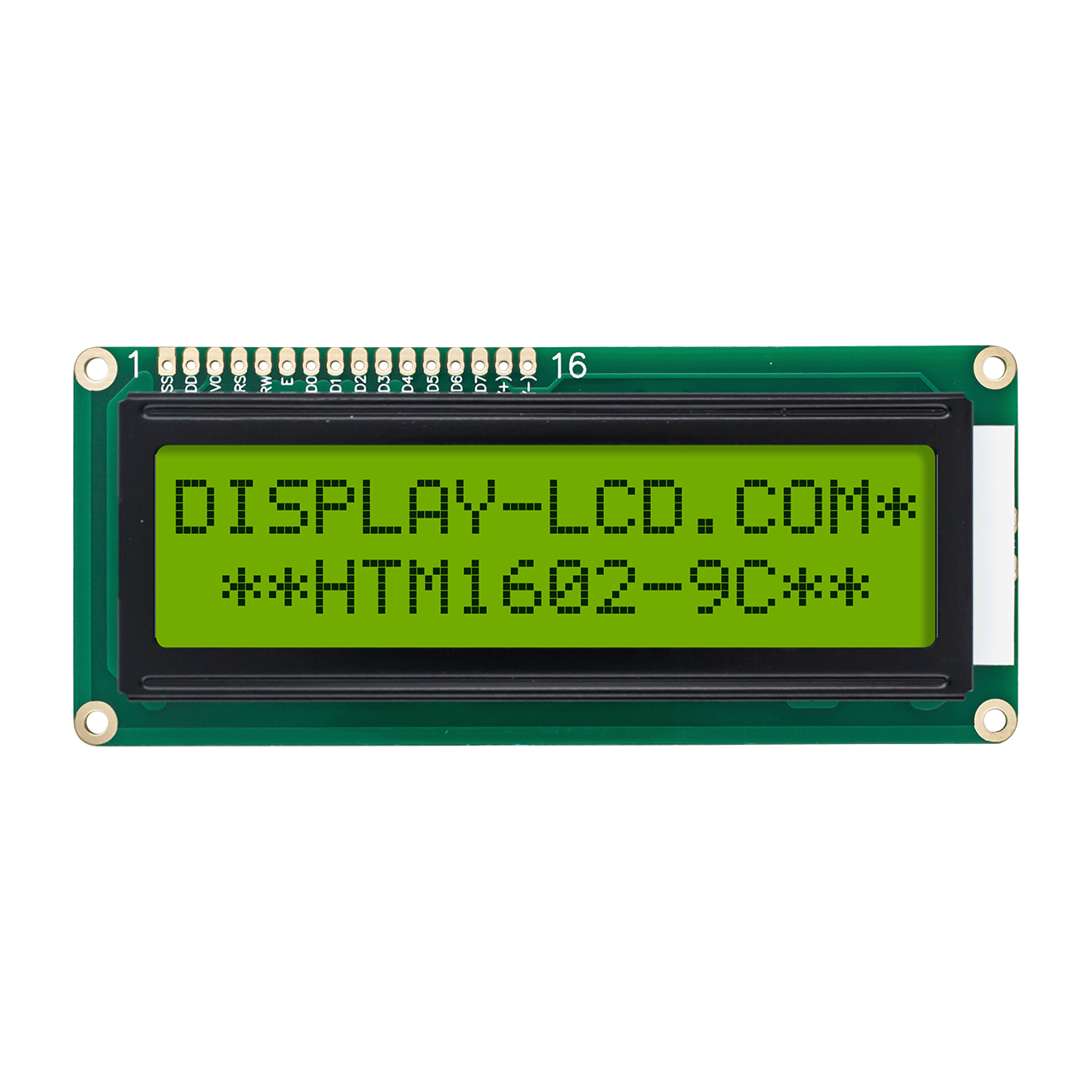

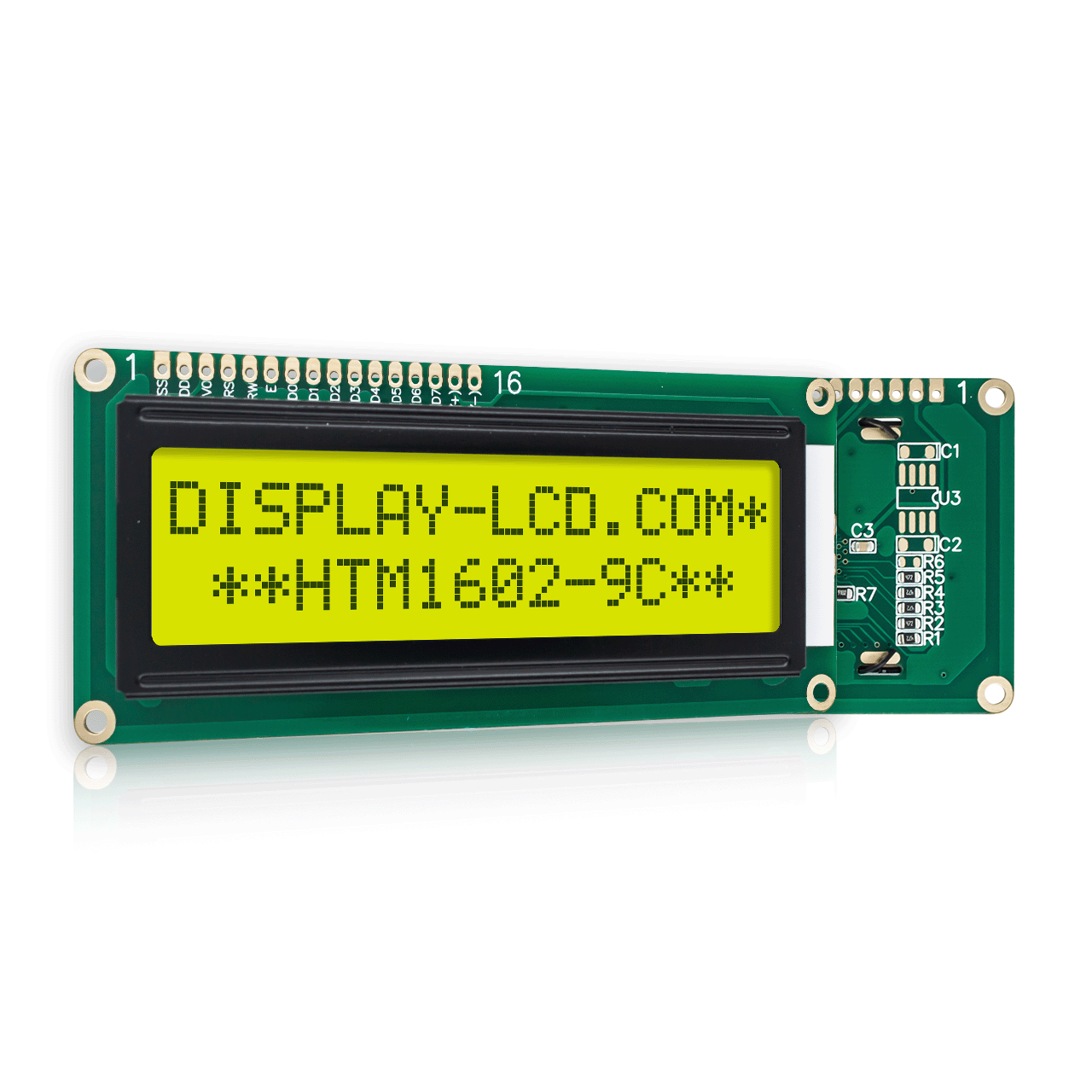

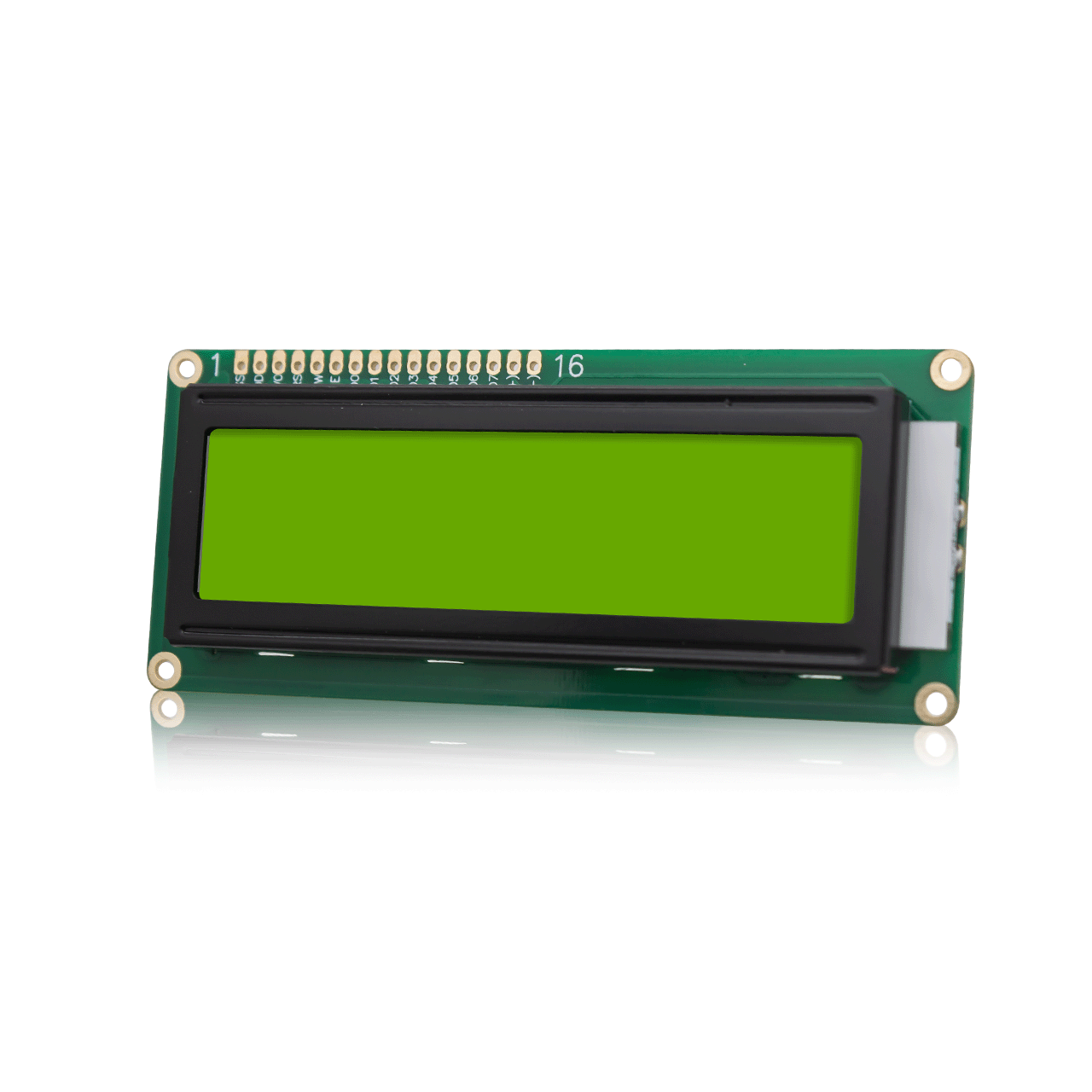

HTM1602-9C-01Y-A5P is a 16x2 character display using reflective LCD technology, which can display dark pixels on a yellow/green background, providing excellent visibility under ambient light conditions and with the help of side green LED backlight. This monitor has a wide operating temperature range of -20 to 70 degrees Celsius, suitable for indoor and outdoor environments. It is equipped with a built-in ST7066U controller and flexible cable, providing the best view at 12:00. This monitor supports 4-bit and 8-bit parallel MPU interfaces, with a working power supply voltage of 5.0V. In addition, it also complies with RoHS standards and environmental standards.
