The car-grade and special-type TFT display series is a high-end product category that Xin Hongtai HOTLCD has specially designed for automotive electronics and special industries. In recent years, with the rapid development of technology and intelligence of automotive electronics, various car companies are constantly changing the size of the central control display from monochrome to color. The size of the color screen ranges from a minimum of 3.5 inches to a current maximum of 12.3 inches. The control of the central control panel is getting more and more, and the full LCD display instrument panel will gradually become the "core configuration" of the car.
Xin Hongtai HOTLCD can provide 10.1 inch, 10.3 inch, 12.3 inch three long strip high-resolution car display screens, and later will develop more large-size car-class special display.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.3-inch round TFT LCD/240x240 color IPS full-viewing angle display/SPI serial interface/GC9A01 controller/STM32/Arduino | TFT Display | 240x240 |
|
35.6x38.1x1.6 | 1.3 | 1.3 | 32.4x32.4 | IPS | 500cd/m2 | FPC-10 pin | SPI | Anti-static ESD 8KV | -20~70℃ | +3.3V | GC9A01 | |

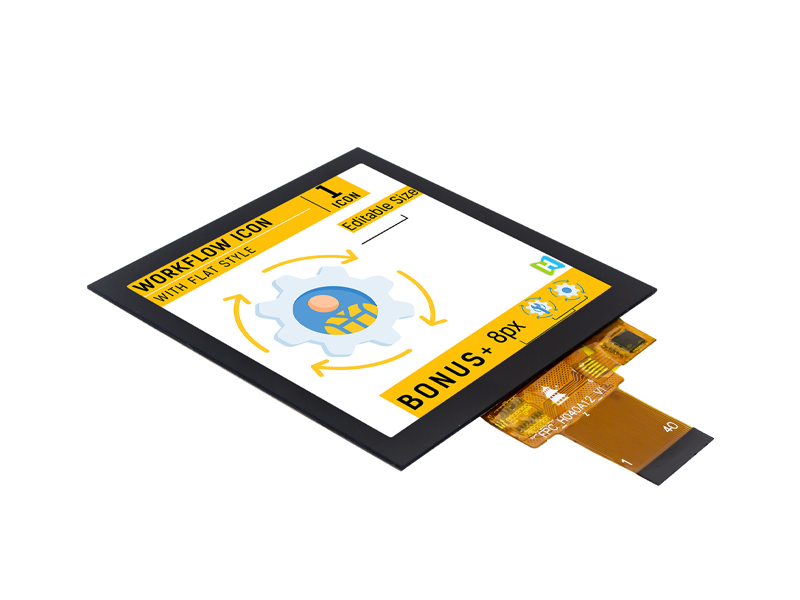

| 4.0-inch 320x320 resolution square display/SPI interface TFT LCD/IPS TFT/C8051/Arduino/STM32 | TFT Display | 320x320 |
|
74.66x76.54x2.02 | 4.0 | 4.0 | 71.14x69.82 | IPS | 450cd/m2 | FPC-40 pin | SPI | Anti-static ESD 8KV | -20~70℃ | +3.3V | ILI9488 | |
| 4.0-inch 320x320 square capacitive touch display/IPS full viewing angle wide temperature TFT/C8051/Arduino/STM32 | TFT Display | ILI9488或兼容IC |
|
83.9x83.9x3.21 | 4.0 | 4.0 | 71.14x69.82 | IPS | 350cd/m2 | FPC-40 pin | SPI | Anti-static ESD 8KV | -20~70℃ | +3.3V | ILI9488或兼容IC | |

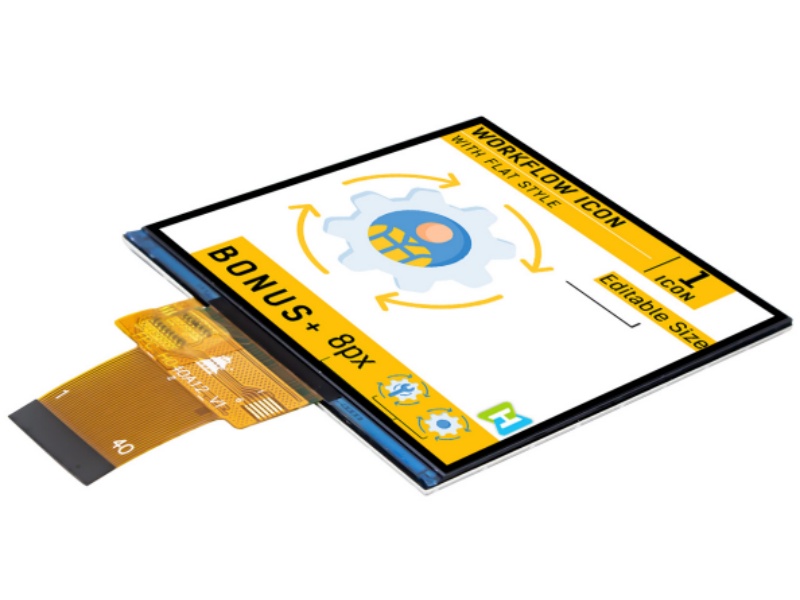

| 480x480 Square Display/4.0-inch Square IPS Full Viewing Angle TFT/ST7701S Controller/RGB Interface/STM32/RK | TFT Display | 480x480 |
|
74.66x76.54x2.06 | 4.0 | 4.0 | 71.86x70.18 | IPS | 71.86x70.18 | FPC-40 pin | RGB | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7701S | |
| 4.0-inch square display 480x480 IPS TFT/ST7701S controller/RGB interface/STM32/RK TFT-H040A1PVIST3G40 | TFT Display | 480x480 |
|
84.0x84.0x3.06 | 4.0 | 4.0 | 71.86x70.18 | IPS | 350cd/m2 | FPC-40 pin | RGB | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7701S | |
| 480x480 IPS TFT/4.0-inch square capacitive touch display/RGB interface/ST7701S controller/plug-in FPC/STM32/RK | TFT Display | 480x480 |
|
83.9x83.9x3.21 | 4.0 | 4.0 | 71.86x70.18 | IPS | 350cd/m2 | FPC-40 pin | RGB | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7701S | |
| 3.0-inch 268x800 full-colorcapacitive touch bar IPS TFT LCD TFT-H030B07ZCIST8C24 | TFT bar | 260x800 |
|
31.0x81.35x3.05 | 3.0 | 3.0 | 24.12x72.0 | IPS | 800cd/m2 | FPC-24 pin | MIPI | Anti-static ESD 8KV | -30~80℃ | +3.3V | ST7701(TFT),FT6336U(CTP) | |
| 720X720 Resolution 4.0" Full Color Square TFT LCD/ST7703 Controller TFT-H040B24ZKIST5N30 | TFT square | 720x720 |
|
74.83x79.98x2.11 | 4.0 | 4.0 | 71.928x71.928 | U85/D85/R85/L85(Typ.) | 500cd/m2 | FPC-30pin | MIPI | Anti-static ESD 8KV | -20~70℃ | 3.3V | ST7703 | |
| 7.0 inch IPS TFT LCD display / 280x1424 resolution color display TFT-H070A21ZBINV6N40 | TFT | 280X1424 |
|
182.47x38.2x3.45 | 7.0 | 7.0 | 170.88x33.6 | IPS | 650cd/m2 | FPC-40 pin | MIPI | Anti-static ESD 8KV | -30~80℃ | +3.3 V | ST7703 | |
| 6.8 inch TFT LCD/480x1280 Resolution/Wide Temperature/IPS Full Viewing Angle/Capacitive Touch Screen/Sunlight Readable/TFT-H068A04ZAINV6C40 | TFT | 480x1280 |
|
73.5*195.39.6*6.4 | 6.8 | 6.8 | 60.192*160.512 | IPS | 600cd/m2 | FPC-40PIN | RGB | Anti-static ESD 8KV | -20~70℃ | +3.3 V | +3.3 V |
