Product type：Character LCD Module
Show contents：16x2
Outline size(mm) ：85.0x29.5x13.1
Size of View Window(mm)：64.5x15.8
Display size(mm) ：55.8x10.64
Point spacing(mm)：0.62x0.64
Product application：Instruments
Visual angle：12H
Backlight type or brightness：YG
Connection PIN Number：16PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：5.0V
Driver chip model：ST7066U

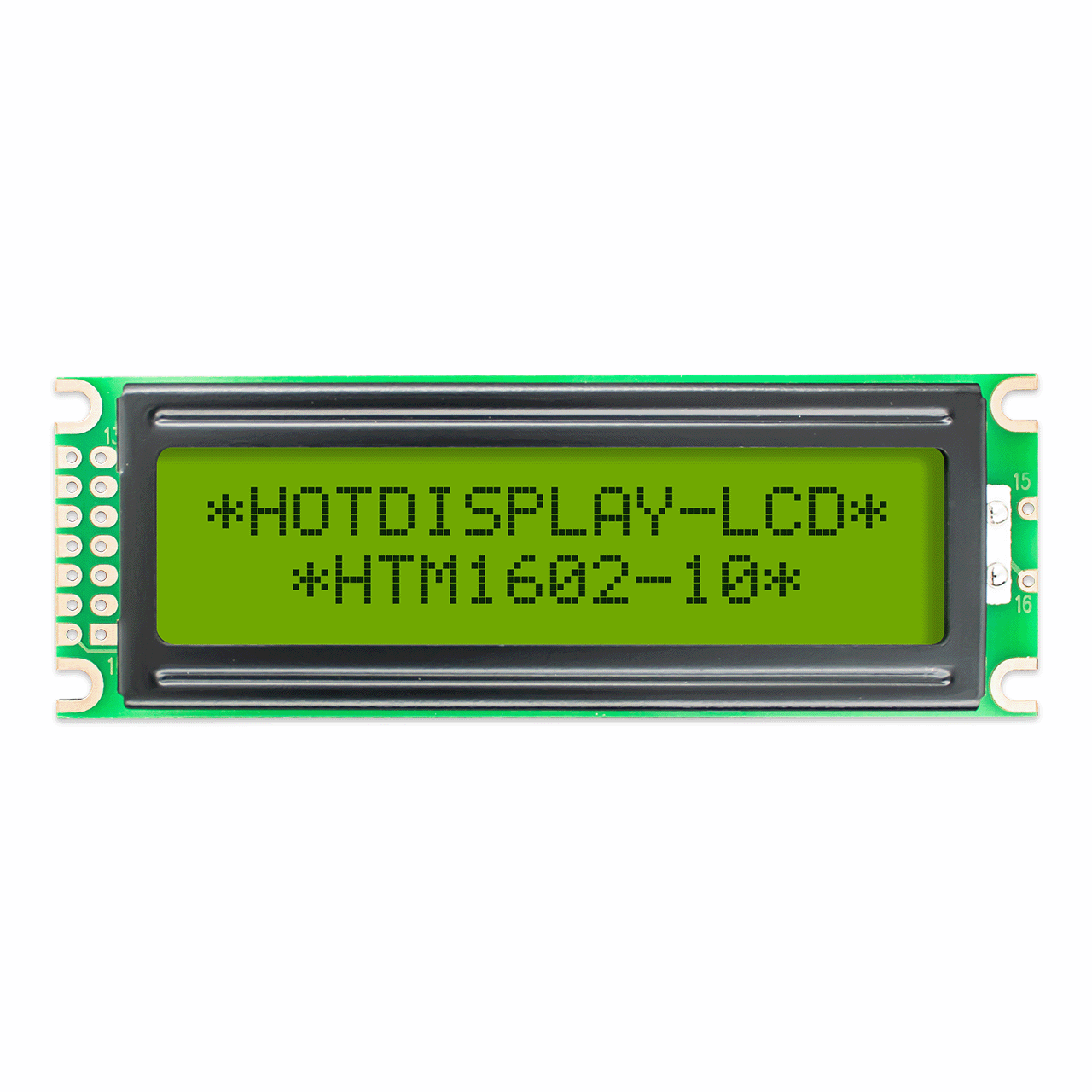

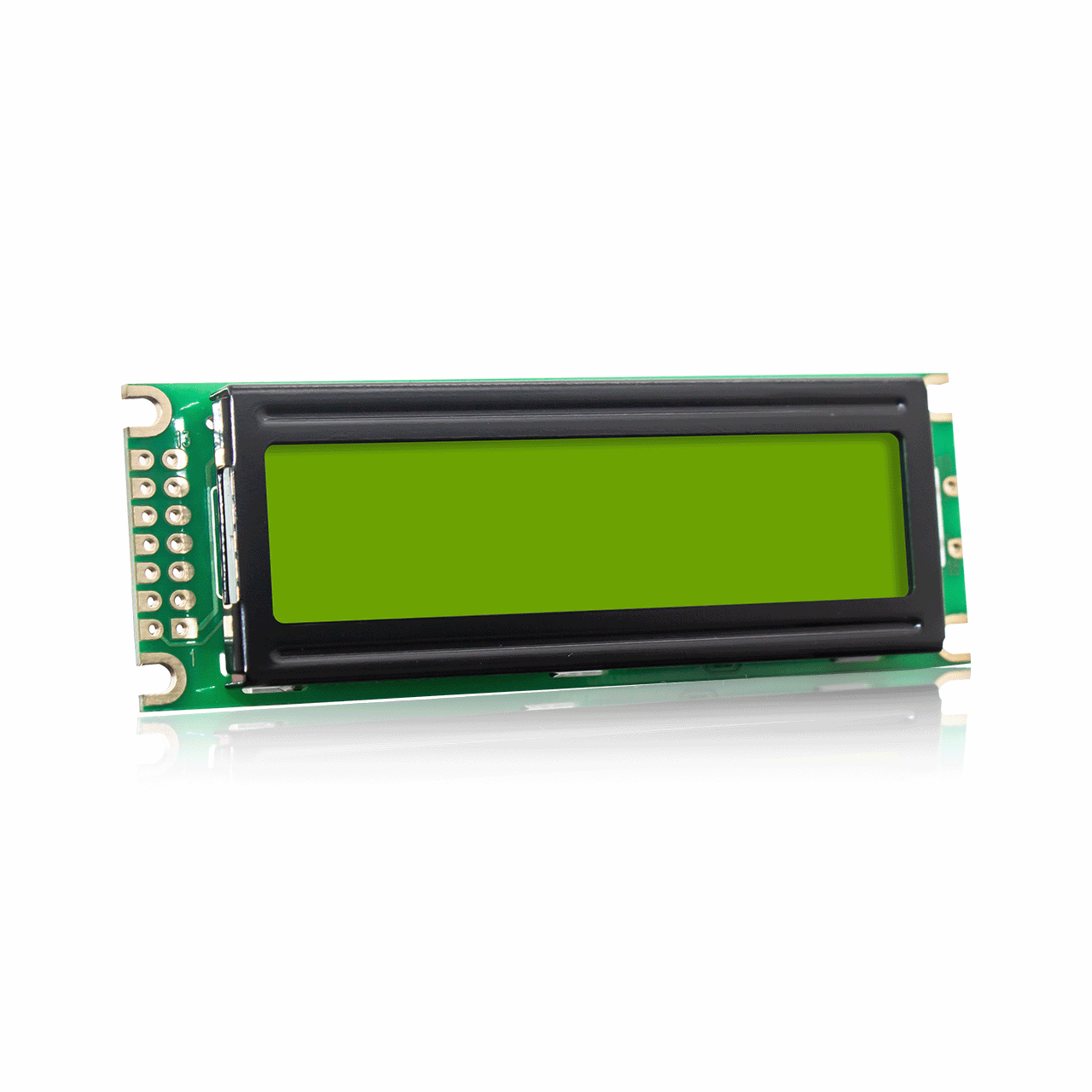

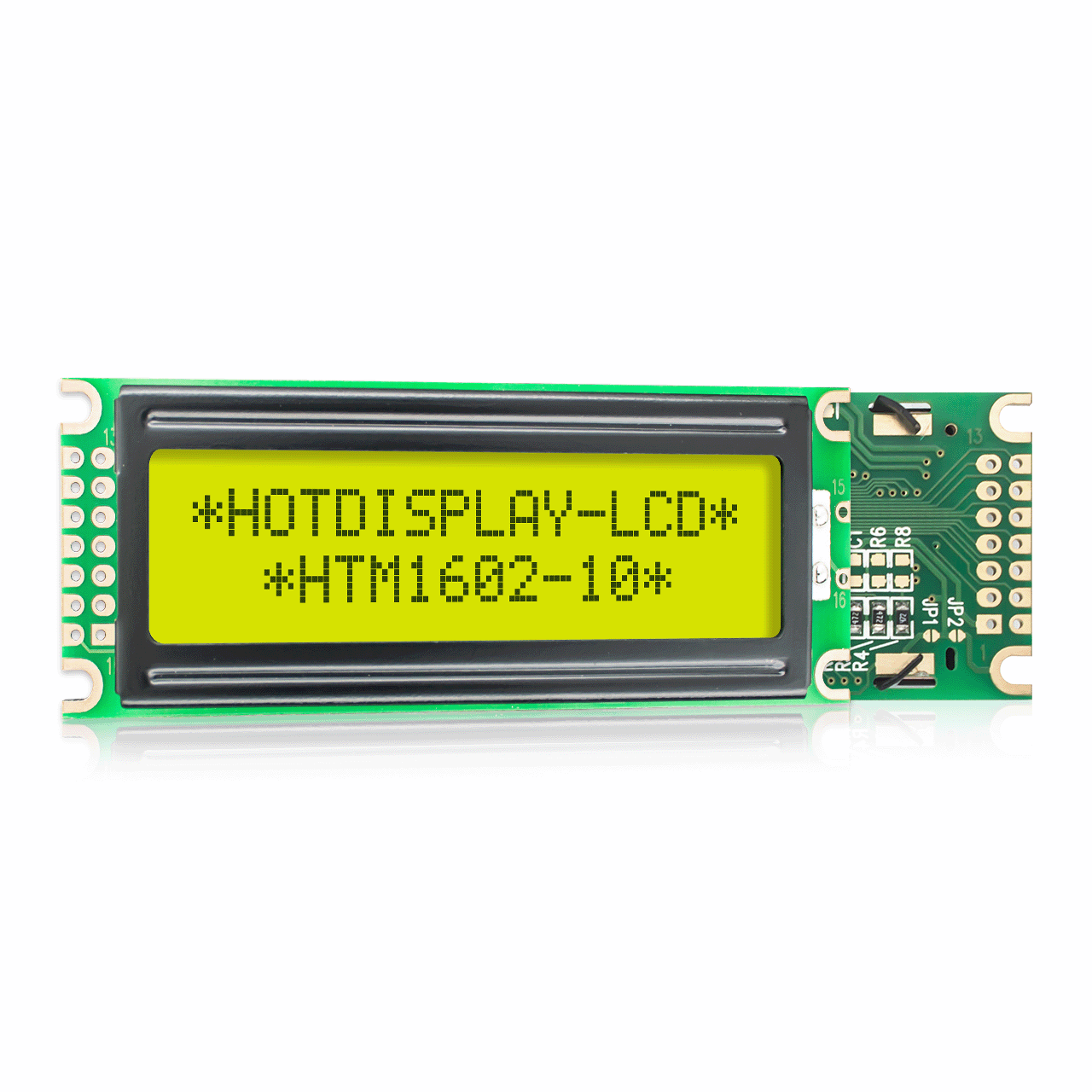

This 2X16 characters LCD shows shows characters with dark pixels on a bright yellow/green background when powered on. This LCD with transflective mode is clearly visible with ambient light or with the added backlight for better brigthness and visibility in darker enviroments. This RoHS compliant, HTM1602-10-01Y-A5P display has an optimal view of 6:00 and has a parallel communicaiton interface. This display operates at 5V supply voltage, is compatible with Arduino/C8051 and other similar development boards, and has a built-in ST7066U controller.
