Product type：Character LCD Module
Show contents：16x2
Outline size(mm) ：85.0x29.5x13.1
Size of View Window(mm)：64.5x15.8
Display size(mm) ：55.8x10.64
Point spacing(mm)：0.62x0.64
Product application：Instruments
Visual angle：12H
Backlight type or brightness：-20~70℃
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Power supply voltage：5.0V
Driver chip model：ST7066U

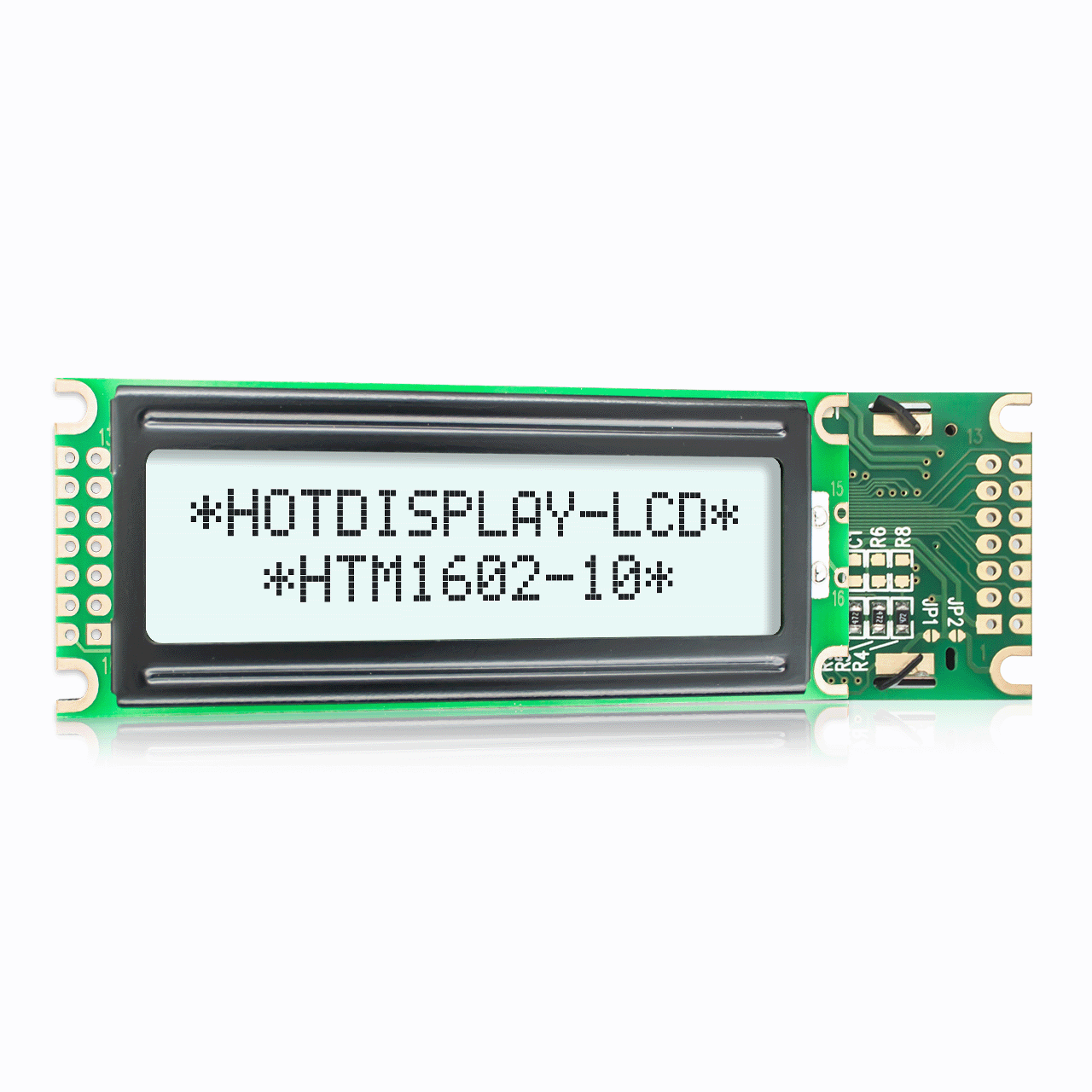

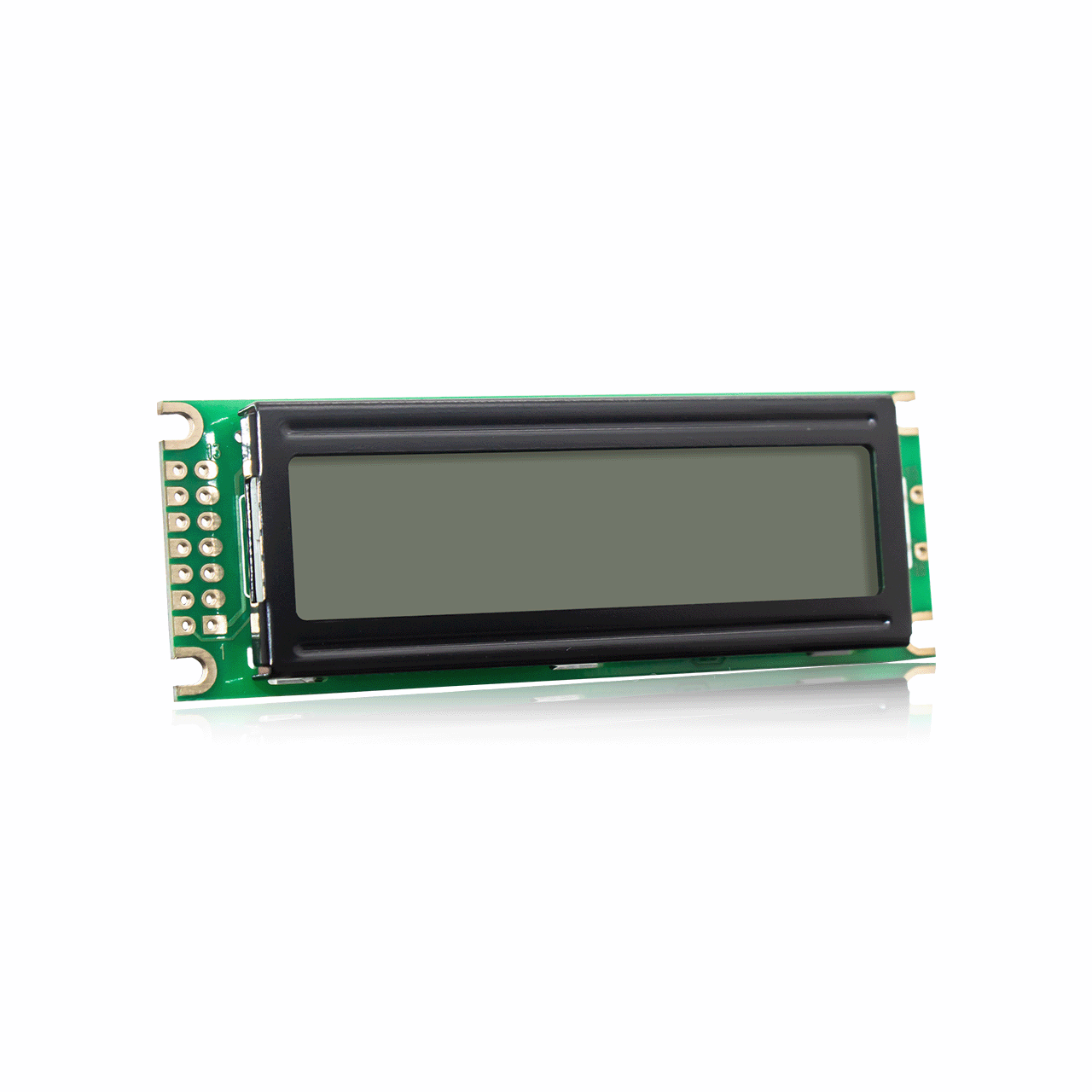

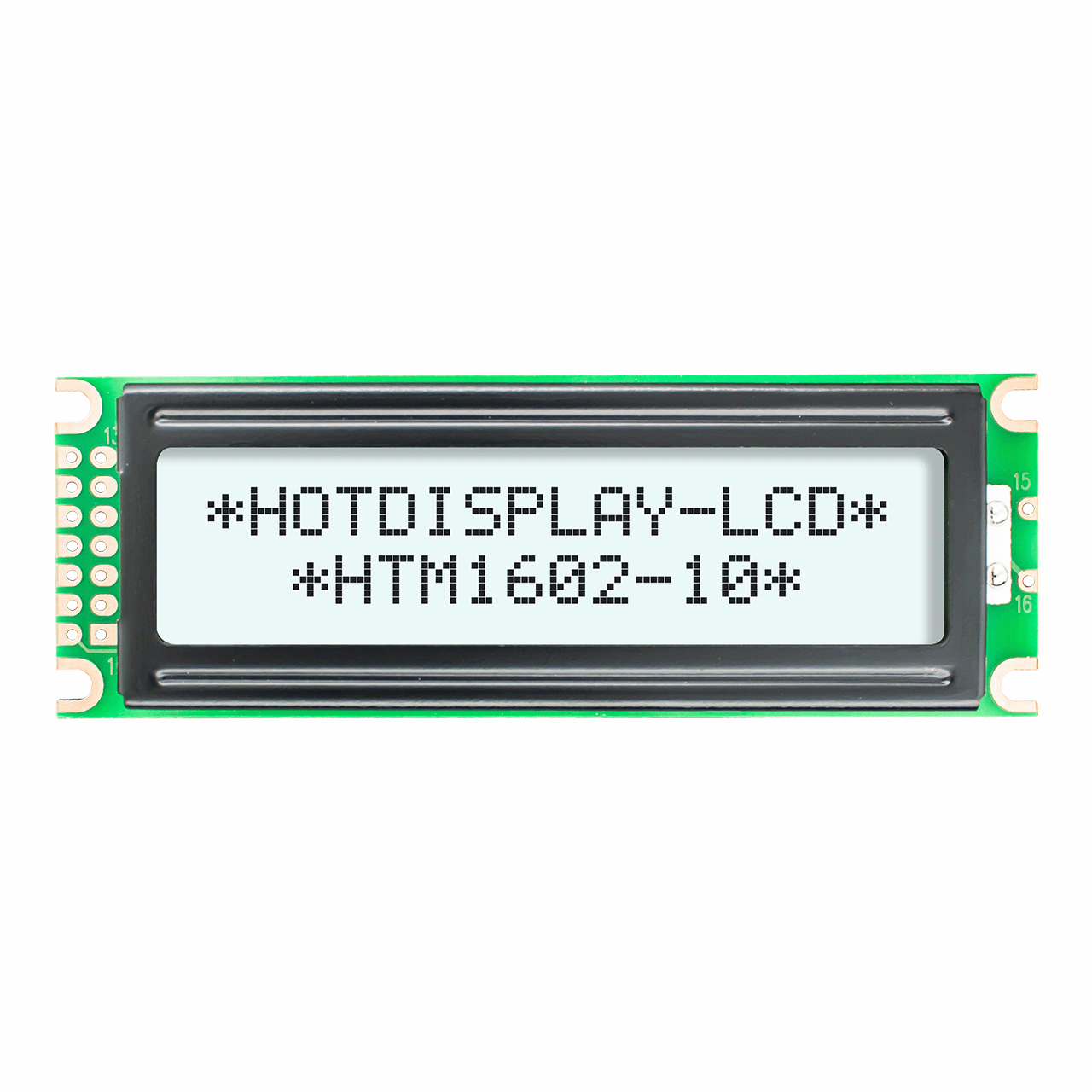

The 16 characters per line HTM1602-10-31W-A5P model is a character Chip-On-Glass (COG) LCD with high contrast that shows dark pixels against a bright white background LED backlight. This LCD employs an FSTN (+) positive display technology, which delivers superior contrast, capable of rendering excellent visibility both in ambient light and with the aid of a backlight. This quality LCD offers a wide operating temperature range from -20 to 70 degrees Celsius which is optimal for all types of environments, including indoor and outdoor. This 16-character, 2-line display has a built-in ST7066U controller, a 6:00 o'clock viewing angle, and a serial communication interface.
Operating at a supply voltage of 5.0V, thisLCD unit assures energy-efficient operation across a diverse range of applications. This LCD is compatible with Arduino and other similar boards.
